Vehicle Guidance

Our SONAR vehicle guidance products will make parking easier and quicker for the customer, thus increasing customer satisfaction and increasing the profitability of your car park.

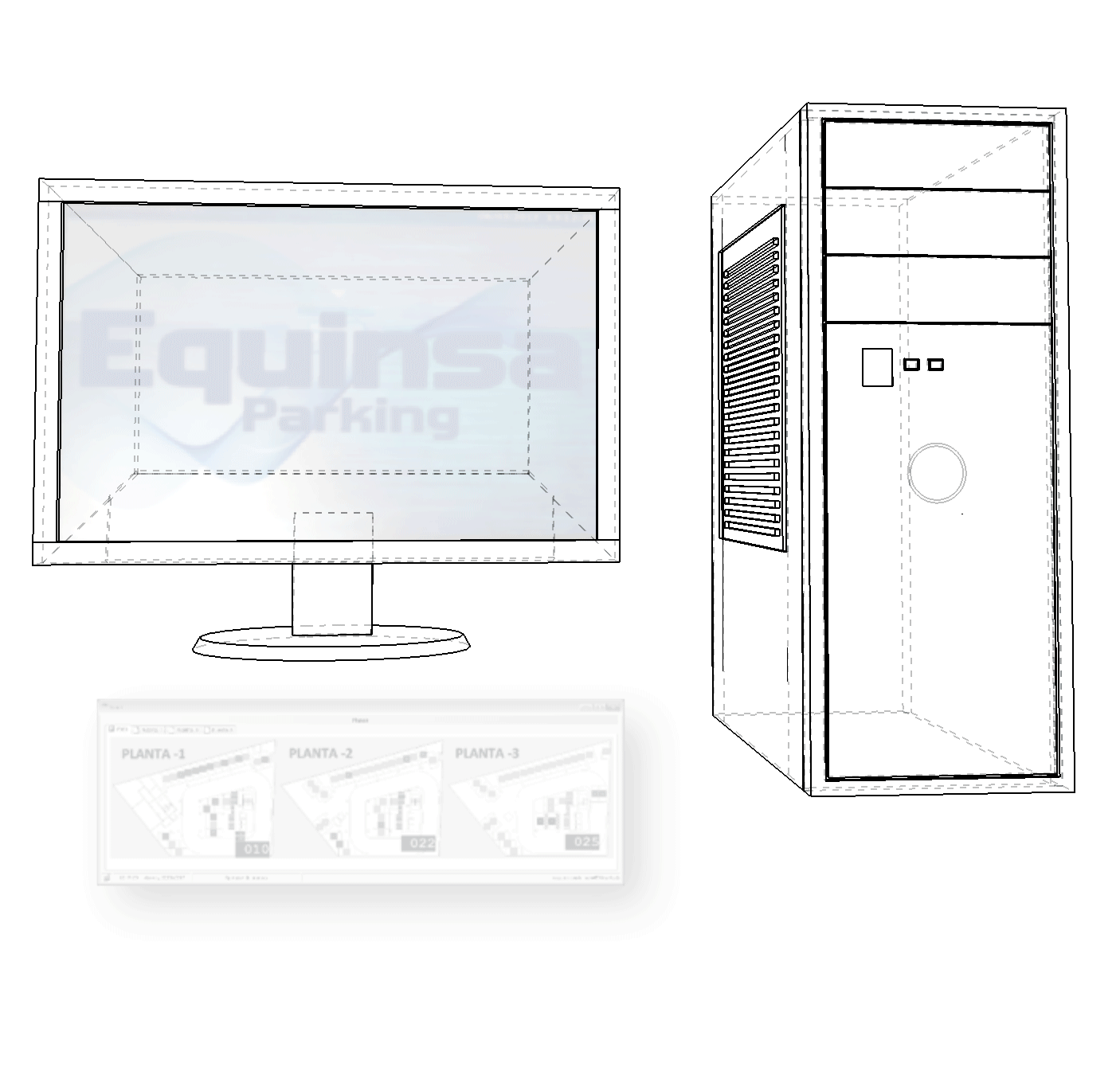

Management Unit

Functions:

  • Intel Core I3 3240 microprocessor.

  • WD 500Gb SATA3 RE4 Raid Edition Hard Drive.

  • DVD LG H24. MOXA CP114 DB9 EL PCIe. LOGITECH K120.

  • Windows licence.

  • Built-in UPS for data protection.

  • 21” TFT screen.

  • Sense Sonar Management and visualisation software.

  • Information about all the spaces in the car park in real time.

  • Sign management and control. Management and control of publicity broadcast on TFT panels.

  • Publication of all types of reports and lists.

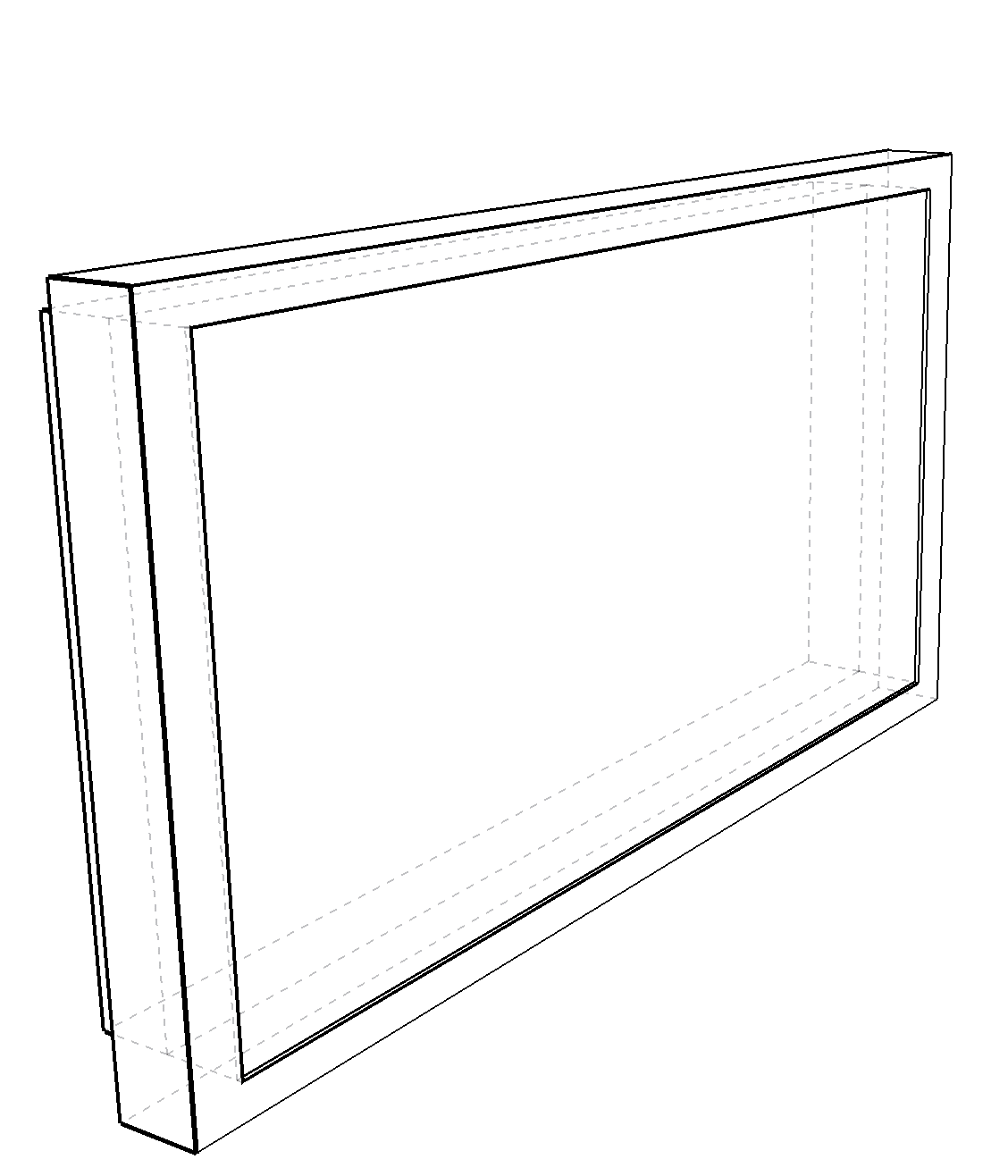

TFT Panel Colour Signpost

Functions:

  • TFT colour technology user information panel.

  • Widescreen format, possibility of displaying, either as a combination or individually, the number of free spaces, text messages, images or videos, both fixed and in carousel.

  • Displays text and pictograms for easy reading.

  • Ceiling or wall mounting, according to your needs.

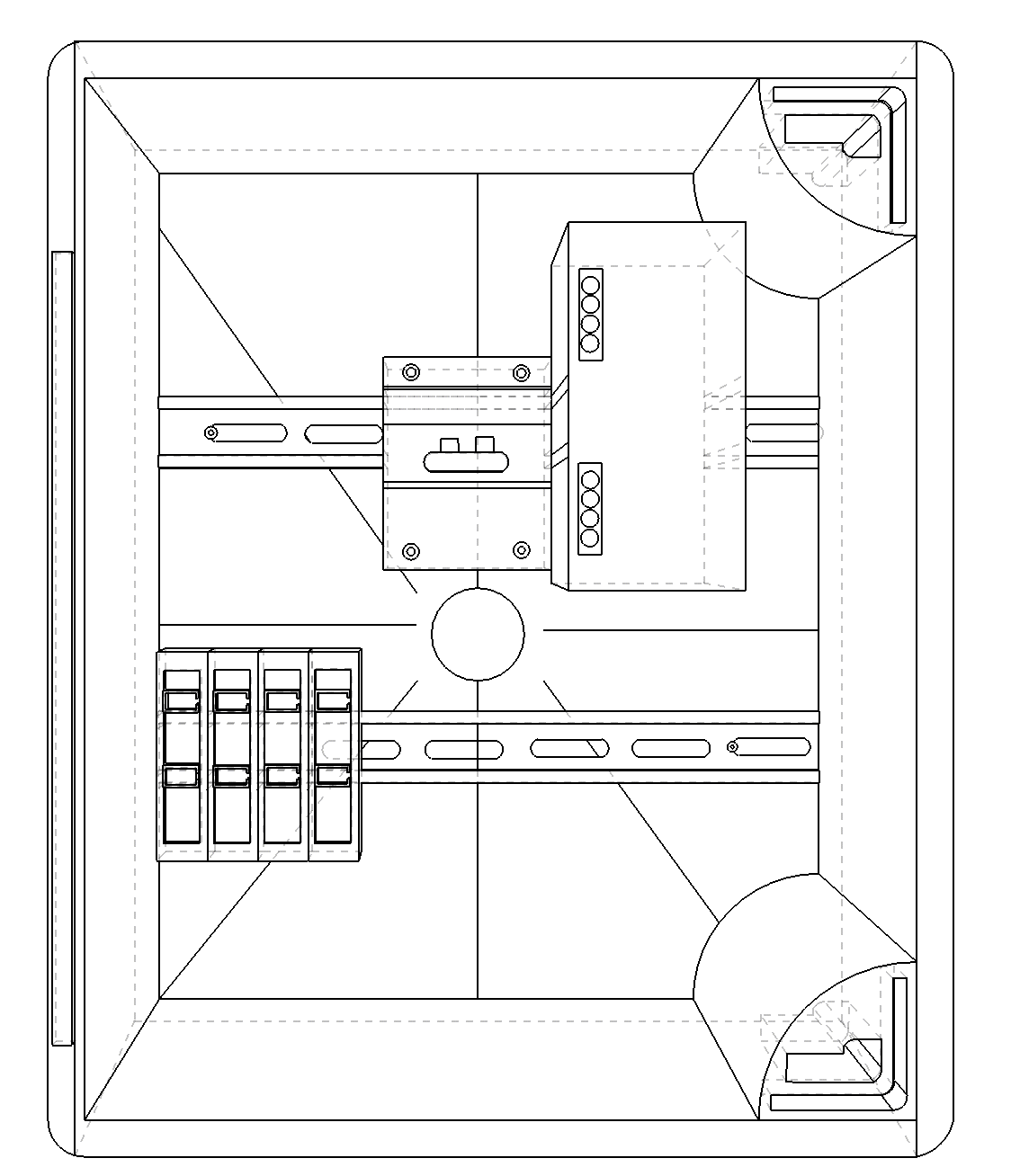

Cabinet with Power Supply + Control Electronics

Functions:

  • 72 Volt power supply switch for sensor power supply and display screens.

  • Fitted in a standard ventilated cabinet, designed for ceiling or wall mounting according to your needs.

  • Includes an electronic control board based on the latest generation microprocessor for sign control, bus to probes and communication with the management system.

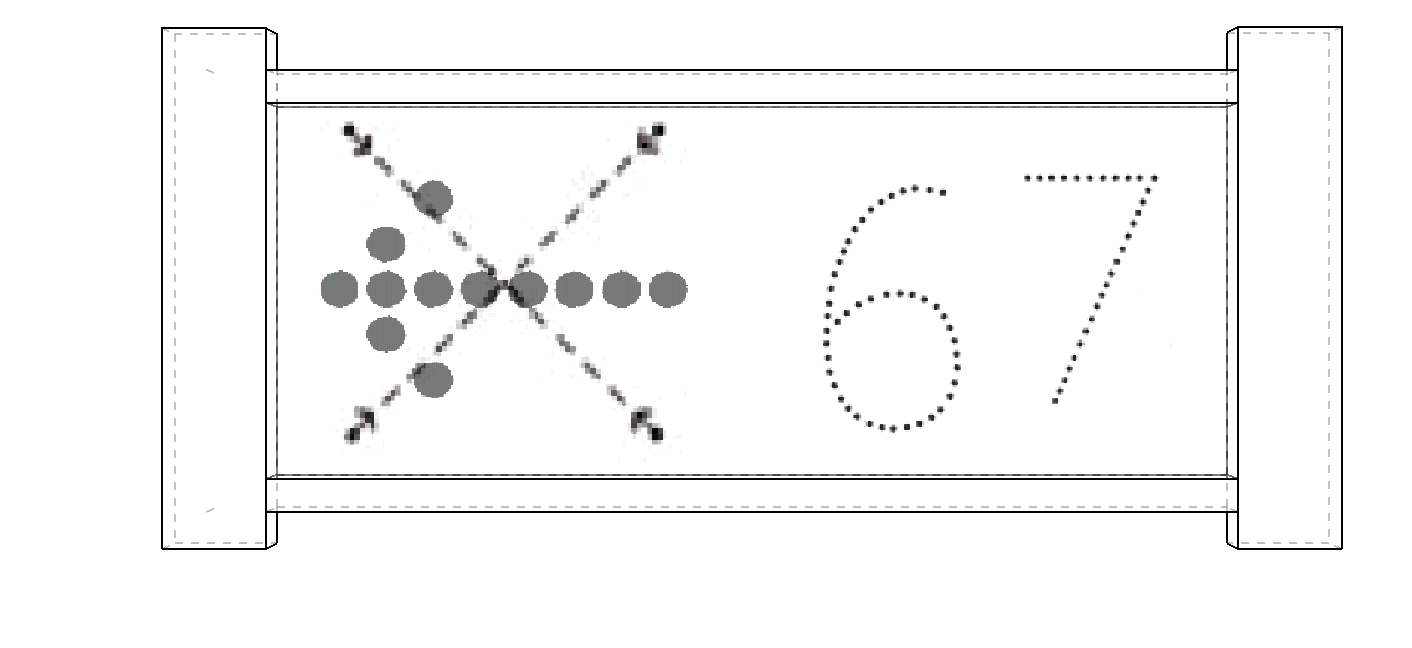

LED Display Screen

Functions:

  • User guidance display screen.

  • Combines digits and symbols (cross or arrow).

  • Displays text and pictograms for easy Reading.

  • High luminosity LED.

  • Ceiling or wall fastening according to your needs.

  • Modular construction according to your needs.

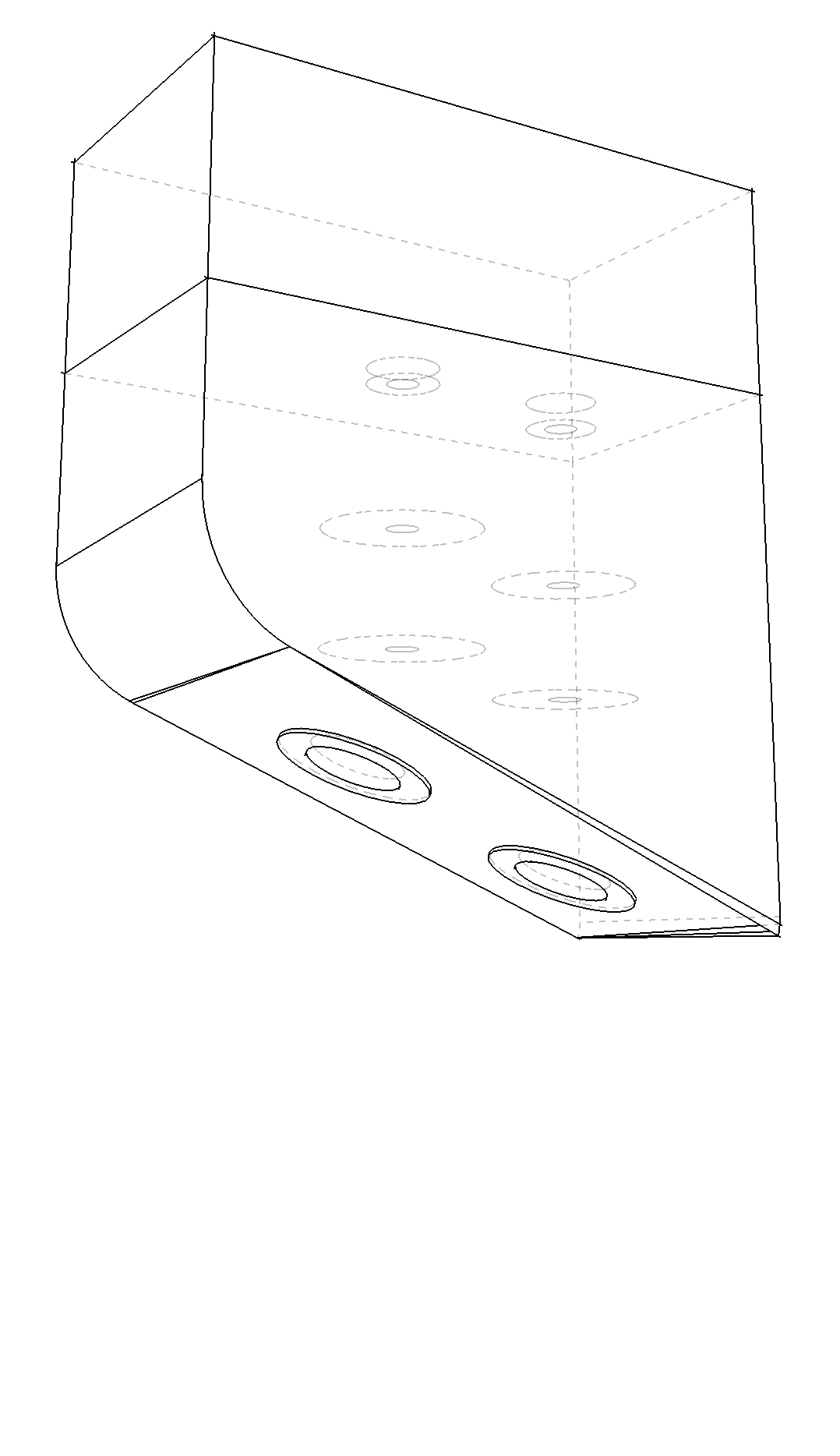

Space Status Detection Sensor

Functions:

  • Double ultrasound emitter / receiver in a single device, connected with a single UTP type cable for power and data. Substantial savings in installation costs.

  • Direct installation in transit lanes, on top of the parking space. It allows for a more intuitive view of the available space by the driver.

  • LED status indicators (free/ free disabled/ occupied).

  • Electronics based on the latest generation microprocessor.

  • Bus communications with the rest of the system.

  • Filtered detection management, avoids reflection errors.

  • Ability to change sensor states and colours from the program.

  • Sending occupancy data in real time to the Control Unit.

  • Remote calibration.

  • Ability to turn off the sensors during closing hours (energy saving), or keeping the sensors active for remote monitoring of the car park.
